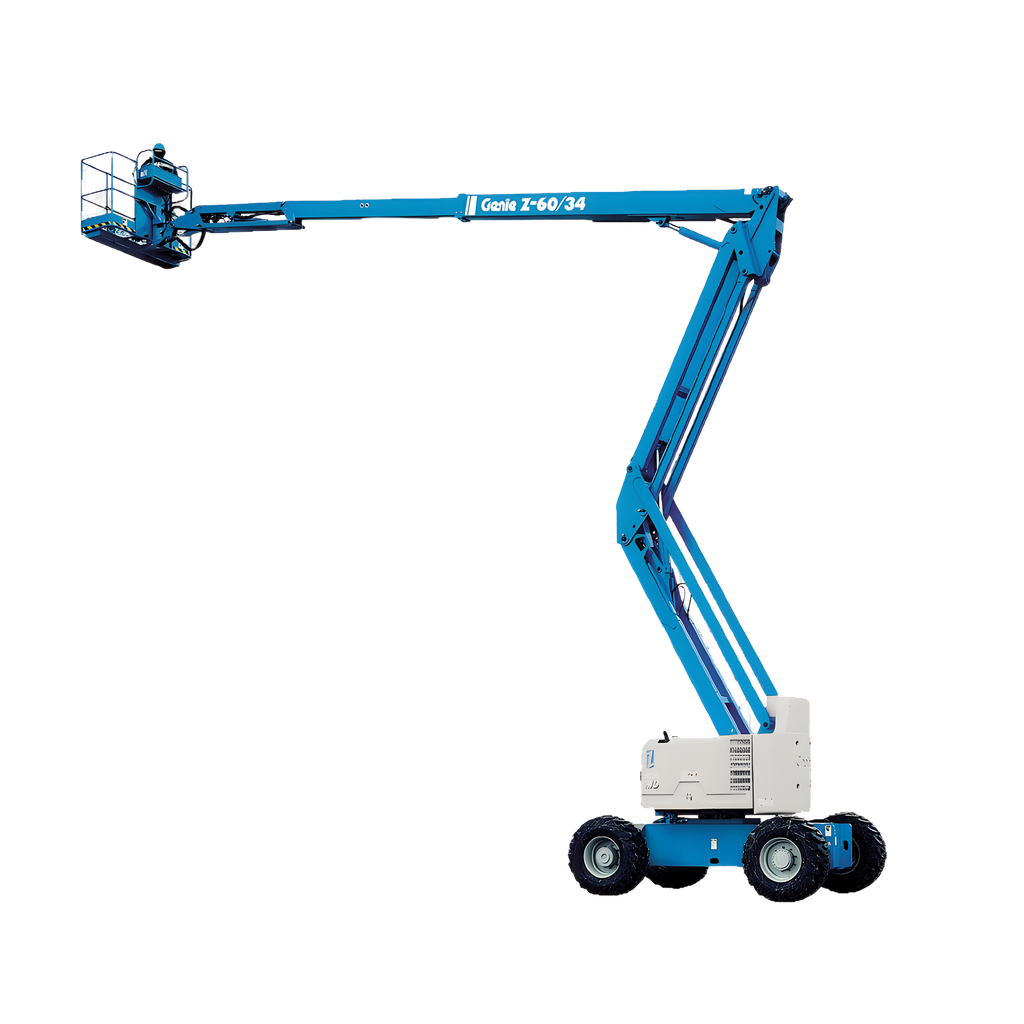

Genie Z60/34 Articulated boom lift 60' Gas & Propane
Genie Z60/34 Articulated boom lift 60' Gas & Propane
Horizontal reach of 36 ft (11.05 m).
Gas/LPG dual fuel engine options.
Fully proportional platform controls with up/down function.
Fuel selection switch on platform and floor controls (gas/LPG models).
Continuous rotation of the turntable 360°.
Locking platform control box covers.
Specifications
| Brand | GENIE |
| Type of energy | Diesel |
| Weight | 10,87 t | 23968 lb |
| Turning radius - outside | 6,07 m | 19,91' |
| Tires | 385/65 – 19,5 |
| Fuel tank capacity | 75,7 L |
| Overall Width | 2,46 m | 8,07' |
| Hydraulic tank capacity | 170,3 L |
| Turning radius - inside | 3,00 m | 9,84' |
| Auxiliary Power unit | 12 V DC |
| Horizontal offset | 11,05 m | 36,25' |
| Working height | 20,40 m | 66,93' |
| Gradeability | 40% |
| Turntable rotation | 360° continuous |
| Drive Speed - Stowed Position | 4,8 km/h |
| Tire type | Foam-filled |
| Charge capacity | 0,23 t | 500 lb |
| Travel Speed - Extended | 1,1 km/h |
| Engine | Deutz Diesel F3L 2011 (3 cylinders) 48 hp (35,8 kw) |
| Overall height | 2,69 m | 8,83' |
| Diesel motor | Diesel Deutz |
| Platform height | 18,40 m | 60,37' |
| Platform Dimensions | 0,76 m x 2,44 m | 2,49' x 8,01' |
| Overall length | 8.15 m | 26.74' |
