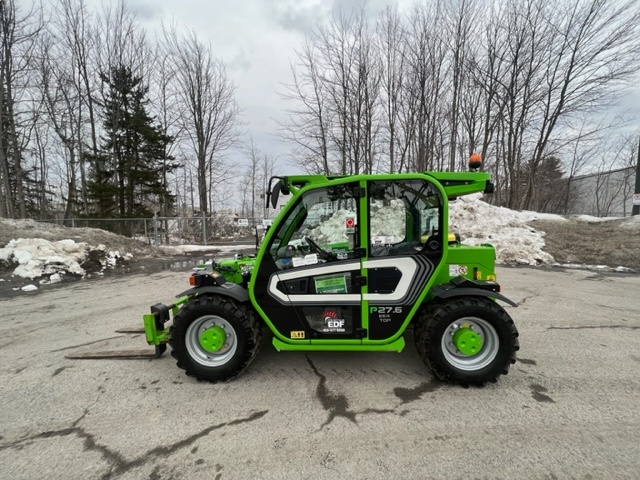

Merlo 27.6 Top Telescopic Forklift 6000 lbs Fuel Powered
The P27.6 is the smallest model in the Compact Telehandler family.
These dimensions, combined with great maneuverability, express maximum maneuverability in the handling of materials, even in small spaces.
Equipped with the exclusive Merlo cabin, already appreciated on the higher models, it guarantees you the largest and most comfortable driving position available on the market.
The large glass surface, the level of soundproofing and the exclusive habitability allow you to work to the maximum of your abilities, while reducing fatigue and guaranteeing maximum safety.
The P27.6 reaches a maximum speed of 40 km/h, which allows you to significantly reduce transfer times and in addition, it does not require gear changes.
This telescopic handler can be homologated as an agricultural tractor, guaranteeing maximum adaptability and versatility of use.
This product is no longer available.
Specifications
| Type of energy | Diesel |
| Maximum lifting height | 5,9 |
| Wheelbase | 2,45 m | 8,04' |
| Width | 1,84 m | 6,04' |
| Length | 3,91 m | 12,83' |
| Maximum reach (m) | 3,30 m | 10,83' |
| Total empty weight (kg) | 4,78 t | 10538 lb |
| Height (mm) cabin low position (+ 6 cm of CS stroke activated) | 1,92 m | 6,30' |
| Turning radius | 3,37 m | 11,06' |
| Lift height at maximum reach (m) | 4,70 m | 15,42' |
| Max reach at max load (m) | 1,40 m | 4,59' |
| Reach at maximum lifting height | 1,80 t | 3968 lb |
| Max load at max reach (kg) | 1,00 t | 2204 lb |
| Number of arm elements | 2 |
| Gear pump (bar - l/min) | 210 - 94 |
| Hydraulic oil tank (l) | 70 L |
| Cabin width | 1,01 m | 3,31' |
| Stage V Tier V turbo engine | Kohler |
| Année | 2020 |
| Hours | 2 010 |
| Certification | CSA |
